HM-TZ430 Rigid Setup Box Assembly Machine product introduction

HM-TZ430 Rigid setup box assembly machine , it's one automatic equipment for
Hinged neck rigid box assembly
The machine adopts the roller brush hinged-neck side paper、 double-sided open
the cover、 middle pasting tape and intermittent clamping box and sending box
working mode. The operation is simple, stable and with high efficient. The whole
machine is controlled by PLC, and the working parameters are set by touch screen.

HM-TZ430 Rigid Setup Box Assembly Machine unit features and standard equipment

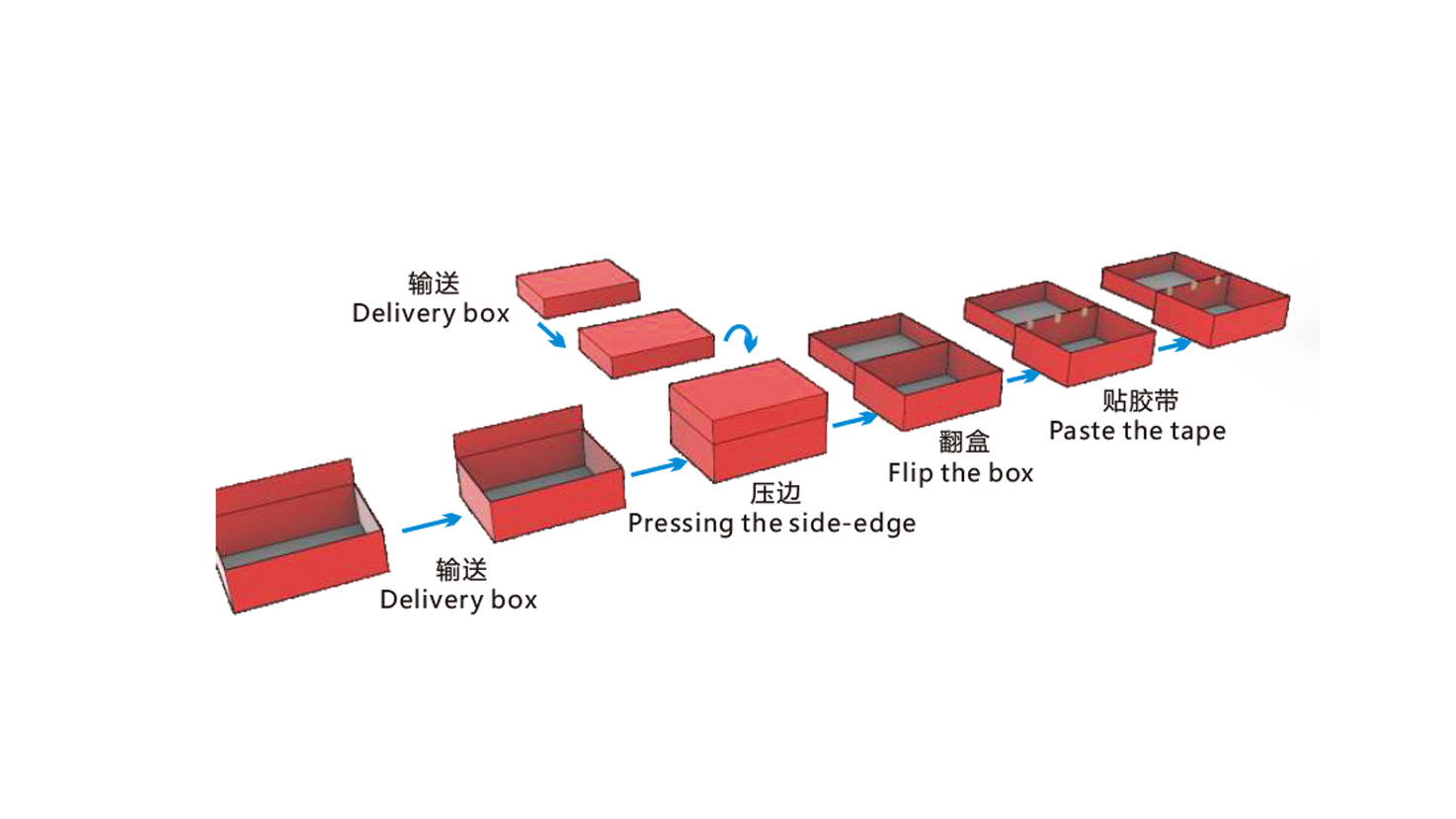

1. Machine with the assembly line mode, and linear multi-station;
2. Station one: goes into the box and calibration;
3. Station two : cover box and brush the hinged-neck side paper；
4. Station three: Pressing the side-edge；
5. Station four: Open the Box Cover；
6. Station five: pasting the tape in the middle combined edge；
7. The machine adopts PLC automatic control, touch screen man-machine interface to set
working parameters;

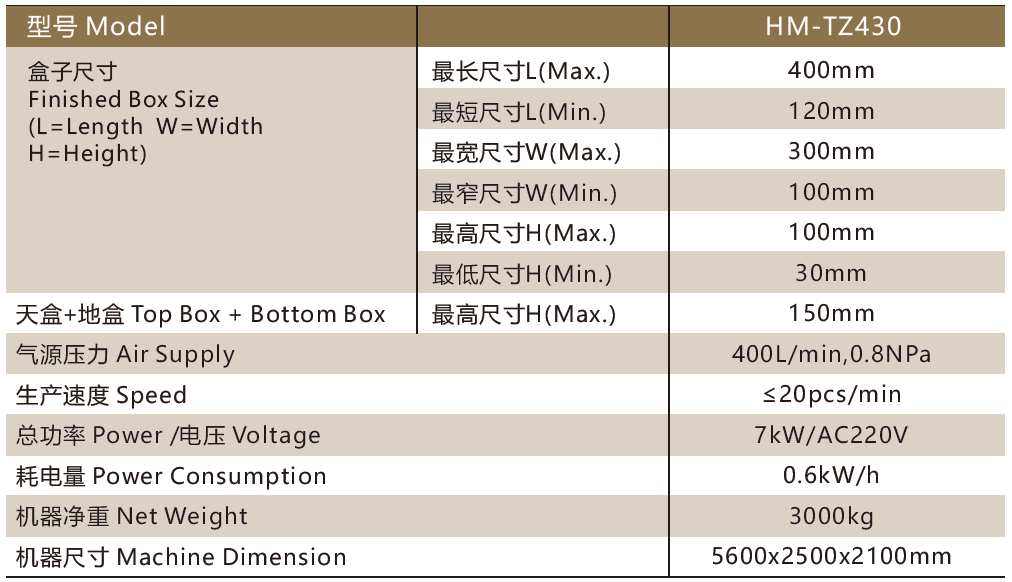

The main technical parameters of HM-TZ430 Rigid Setup Box Assembly Machine
