HM-600E Automatic Gluing and spotter Machine
HM-600E Automatic Gluing and spotter Machine HM-600E Automatic Gluing and spotter Machine
  • Commodity name:

    HM-600E Automatic Gluing and spotter Machine
  • Shelf time:

    2024-08-24 15:21:11
  • Browse times:

    1560次
  • HM-600E Automatic Gluing and spotter Machine Functional specificationsHM-600E automatic gluing and spotter machine is suitablefor the positioning process production of various rigid boxpositioning, al
  • Details of the product

HM-600E Automatic Gluing and spotter Machine Functional specifications


HM-600E automatic gluing and spotter machine is suitable
for the positioning process production of various rigid box
positioning, also be used for positioning process production of
cardboard and paper.Larger size hard cover can be produced
(see parameters) and inner linings can be attached (optional
function)
This machine adopts PLC and touch screen man-machine
control system and camera tracing system to realize automatic
completion of paper feeding, gluing and positioning. In feeder,
the glue and conveyor belts are driven by servo, which can be
infinitely variable, high precision, easy to adjust, and save time.
The positioning part adopts the camera tracing system and the
robot grasping parts to improve the positioning accuracy and
efficiency, the error range is ±0.05mm, and the speed is faster.


HM-600E Automatic Gluing and spotter Machine  unit features and standard equipment

1. Suit to all kinds of paper and box shells positioning process;
2. Suit to all kinds of paper and cardboard positioning process ;
3. Parameter adopts computer digital setting;
4. Auto error stop and display;
5. Automatic feed paper;
6. 24-hour glue timing heating function;
7. Servo system for controlling the whole machine;
8. Spotter by camera tracing system and SCARA (Selective Compliance
Assembly Robot Arm);(Details please check the note)
9. Automatic control system of glue viscosity (optional); (Details please check the
note)
10. Multiple cardboard positioning function (optional);
11. Hard cover lining function (optional);

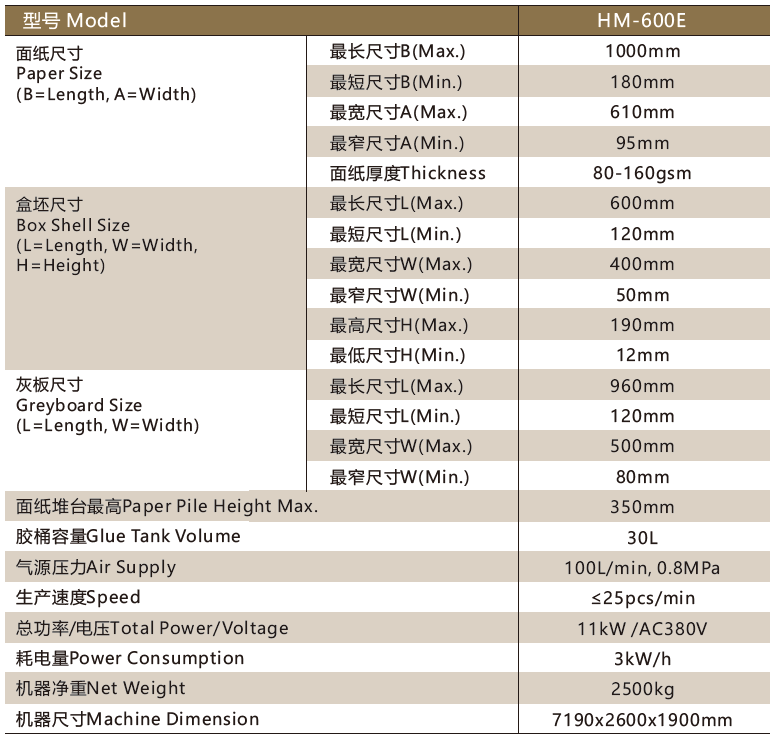

The main technical parameters of HM-600E Automatic Gluing and spotter Machine




Note:

1. The Card Paper size is determined by the cardboard's size and quality.

2. The production speed of this machine is determined by the paper quality, the box shell size/quality and cardboard size/quality.
