HM-DP6545D/HM-DP6545C Automatic Rigid Box Machine
HM-DP6545D/HM-DP6545C Automatic Rigid Box Machine HM-DP6545D/HM-DP6545C Automatic Rigid Box Machine HM-DP6545D/HM-DP6545C Automatic Rigid Box Machine
  • Commodity name:

    HM-DP6545D/HM-DP6545C Automatic Rigid Box Machine
  • Shelf time:

    2024-08-24 14:36:04
  • Browse times:

    55次
  • HM-DP6545D/HM-DP6545C Automatic Rigid Box Machine product introductionHM-DP6545D Automatic Rigid Box Machine with Double wrapper, which designed for big-size premiumboxes. It is suitable to make vario
  • Details of the product

HM-DP6545D/HM-DP6545C Automatic Rigid Box Machine product introduction

HM-DP6545D Automatic Rigid Box Machine with Double wrapper, which designed for big-size premium
boxes. It is suitable to make various types of boxes for mass production, such as mobile phone boxes, gift boxes,
cosmetic boxes, watch boxes, etc. Size range is more bigger, more suitable for current packaging market.
Machine’s appearance is new design which is safer and more beautiful.
HM-DP6545D adopts PLC and man-machine control, camera tracing system, and can automatically feed
cover paper, feed greyboard, paste four corners, spot greyboard, lift box, wrap box, fold corner edges and form
box.
The feeder, the gluer and the converyor are driven by well known servos which have continuously variable
transmission, and enjoys high accuracy, easy adjusting, and high efficiency. The corner unit can be attached to
the tape of different lengths according to the need; The spotting unit adopts camera tracing system and robot
arm to pick and spot the greyboard ,enhancing the spotter accuracy to ± 0.05mm,and its spotting and
adjusting is more faster:The forming unit employs Japan THK linear slider and virtual electronic cam driving
system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges

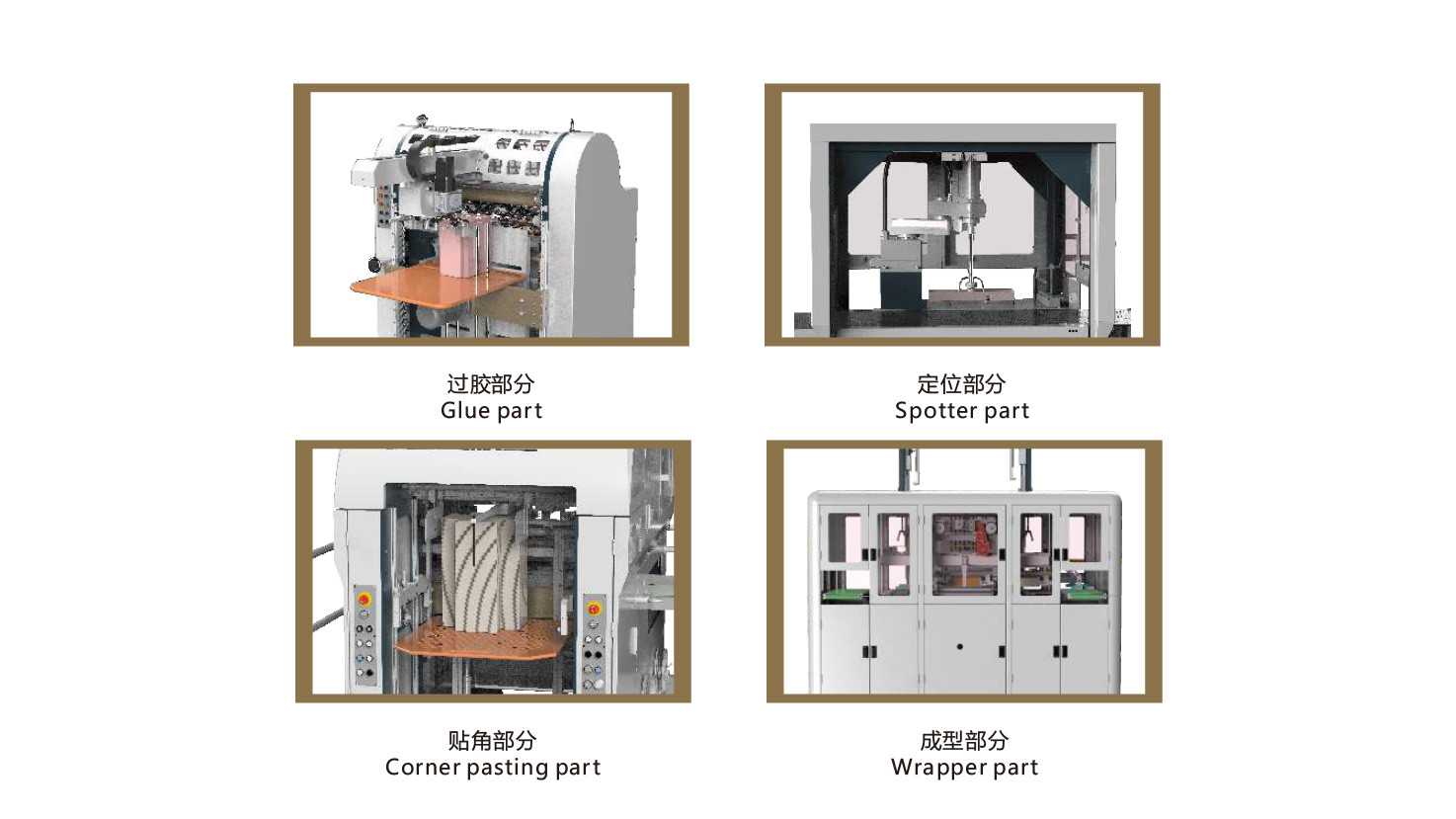

HM-DP6545D/HM-DP6545C Automatic Rigid Box Machine unit features and standard equipment

1. Suit to all kinds of rigid boxes in mass production;
2. Double-station forming; (Details please check the note)
3. Parametric intelligent adjustment;
4. The long side and short side are layered and formed; (D)
5. Long and short sides are wrapped in the same layer; (C)
6. Forming can work independently on one side;
7. The cam box can participate in motion control as a whole; (Details please check the
note)
8. The box-out direction is parallel to the main conveyor belt;
9. Parameter adopts computer digital setting;
10. Auto error stop and display;
11. Automatically feed paper and greyboard;
12. 24-hour glue timing heating function;
13. Wrapper can input 300 product formulas;
14. Corner pasting part with independent man-machine control and heating system.;
(Details please check the note)
15. Multifunctional Robot Vision Image Positioning System (spotting inaccuracy
±0.05mm); (Details please check the note)
16. Wrapper can automatic lift and wrap box;(Details please check the note)
17. Automatic control system for glue viscosity (optional); (Details please check the note)
18. Bottom mould use Piston type;(Details please check the note)
19. Main Slider and pull mold section synchronized; (Details please check the note)

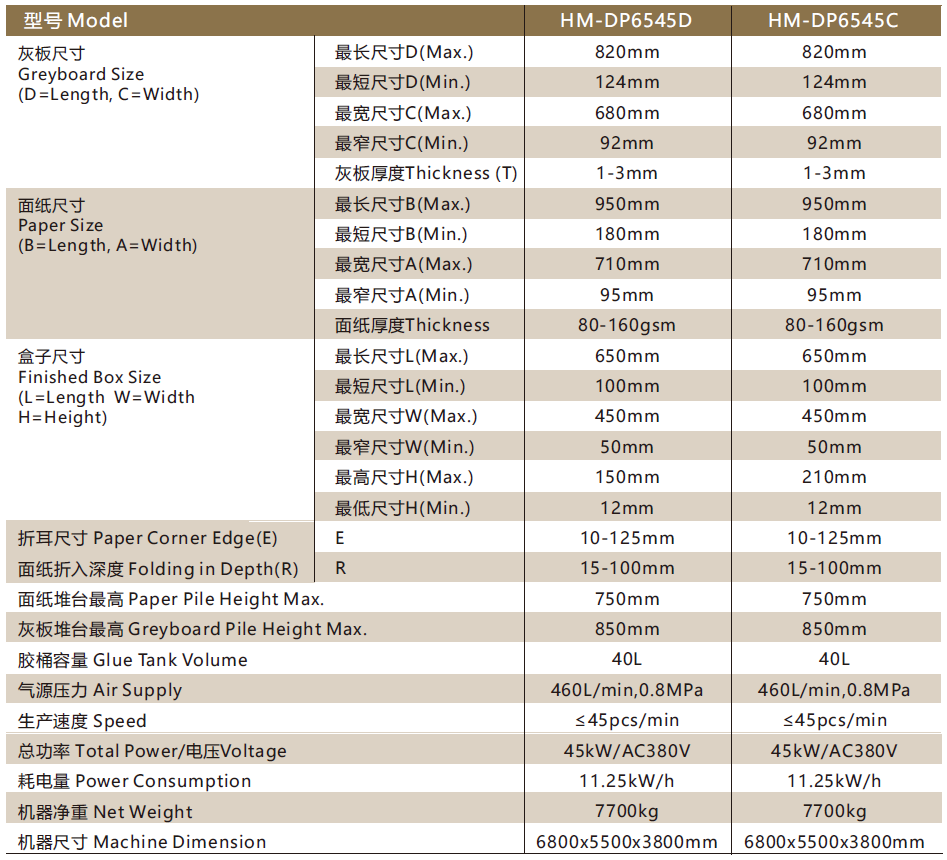

The main technical parameters of HM-DP6545D/HM-DP6545C Automatic Rigid Box Machine
