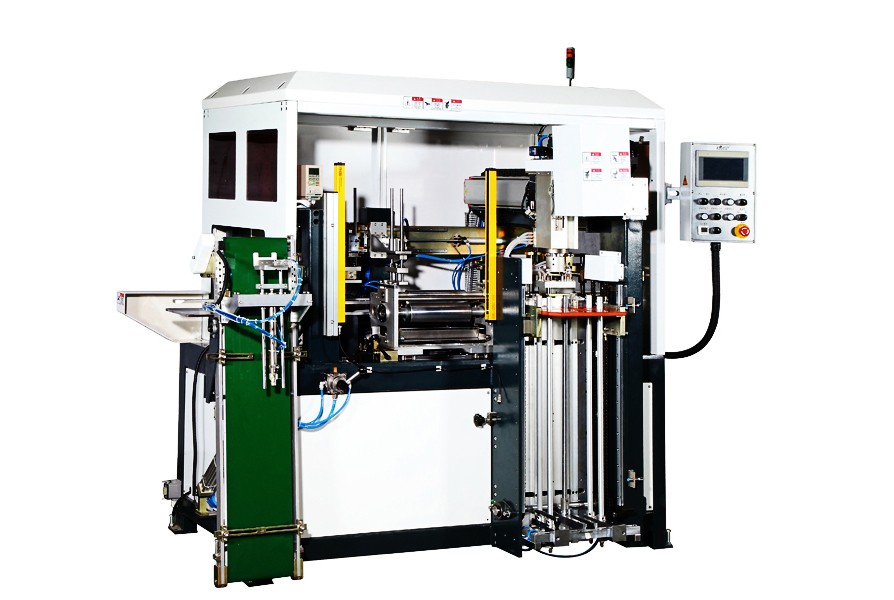

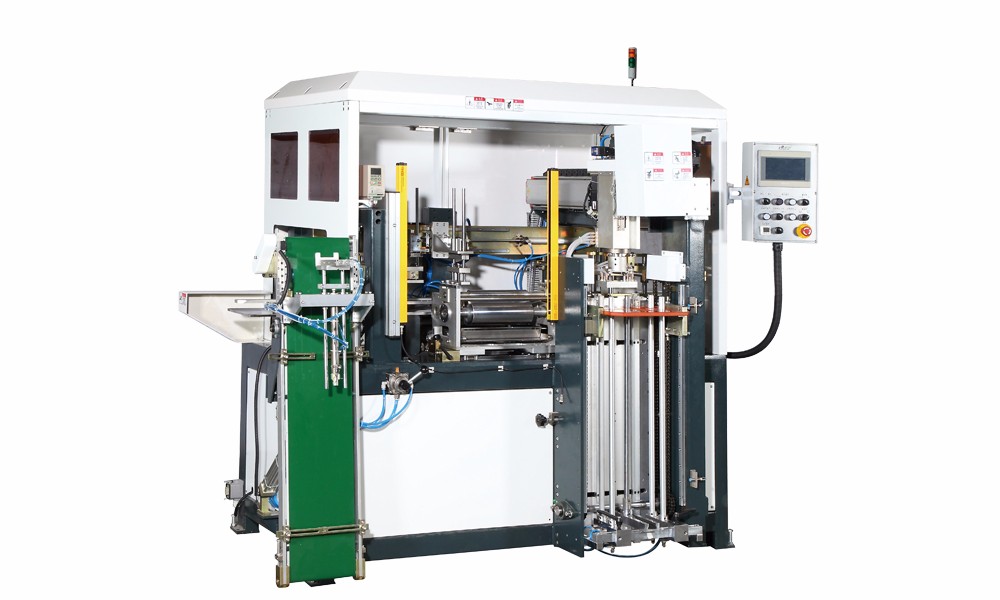

HM-ZXTK2015B Automatic Lining Machine
HM-ZXTK2015B Automatic Lining Machine HM-ZXTK2015B Automatic Lining Machine HM-ZXTK2015B Automatic Lining Machine

  • Commodity name：

    HM-ZXTK2015B Automatic Lining Machine

  • Shelf time：

    2021-06-04 16:20:01

  • Browse times：

    1310次
  • Hongming machinery mainly produce Automatic rigid box machine, rigid box maker, rigid box line, glueing machine, box wrapping machine, box maker, ect. These machines are widely used to making rigid box, fancy box, custom box, cell phone boxes, chocolate boxes, etc.
  • Details of the product

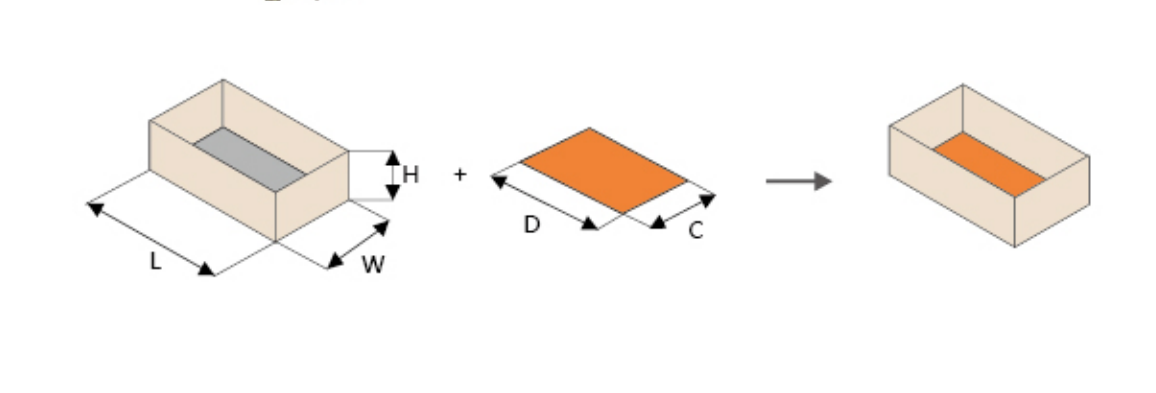

HM-ZXTK2015B Automatic Lining Machine Features and function


1. This is a line which has 6 working positions.

2. Position 1 to feed the box. It has a conveyor.

3. Position 2 to press the box.

4. Position 3 to scrape on the long sides.

5. Position 4 to scrape on the wide sides.

6. Position 5 to paste the lining. It has the lift for lining stack, one vacuum pump to suck the lining, two-axis to move the lining and the servo motor for glue roller.

7. Position 6 to press the lining.

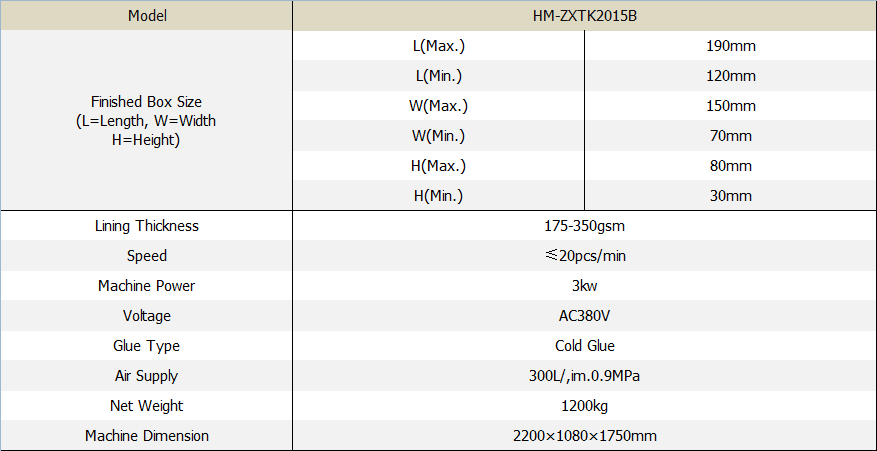

Technical parameters
